What Is the Best Way to Cool an NVIDIA GPU?

The best way to cool an NVIDIA GPU is to improve the whole cooling path before buying extra hardware: give the case clear intake and exhaust airflow, keep dust away from the heatsink, set a sensible fan curve, and reduce unnecessary heat with a frame-rate cap or a mild undervolt. A larger air cooler or an all-in-one liquid cooler can help when those steps are not enough, but liquid cooling is not automatically better for every gaming PC.

Your target is not the lowest possible temperature. It is stable performance without excessive fan noise, throttling, or a temperature that keeps climbing during a sustained workload. Because cooler design and temperature limits vary by model, use the GPU maker's specifications as the final reference instead of treating one universal number as a rule.

The best cooling setup for most NVIDIA GPUs

For a typical GeForce desktop card, start with this order of operations:

1. Create a front-to-back airflow path. Front or bottom fans should bring cool air into the case, while rear or top fans exhaust warm air. Make sure the graphics card is not pressed against a solid panel or blocked by drive cages.

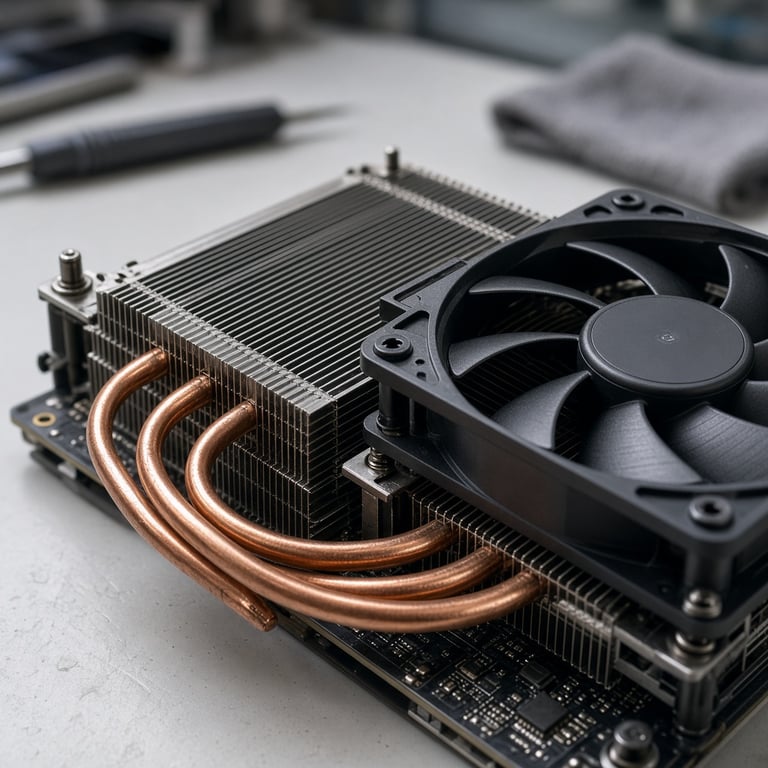

2. Clean the filters and heatsink. Dust on the fin stack acts like an insulating blanket. Power down the system, disconnect it, and use appropriate compressed air while preventing the fans from freely spinning.
3. Tune the GPU fan curve. A slightly more responsive curve can prevent heat from building during long gaming sessions. Balance the setting against noise rather than forcing the fans to run at full speed all the time.
4. Reduce avoidable workload heat. A frame-rate limit, sensible game settings, or an undervolt can lower power draw while preserving a similar experience. Test changes one at a time.
5. Check the surrounding hardware. A hot CPU, poor cable placement, or a cramped case can raise the air temperature reaching the GPU.

This approach usually delivers more value than replacing a working cooler immediately. It also makes it easier to identify the real cause when the card runs hot.

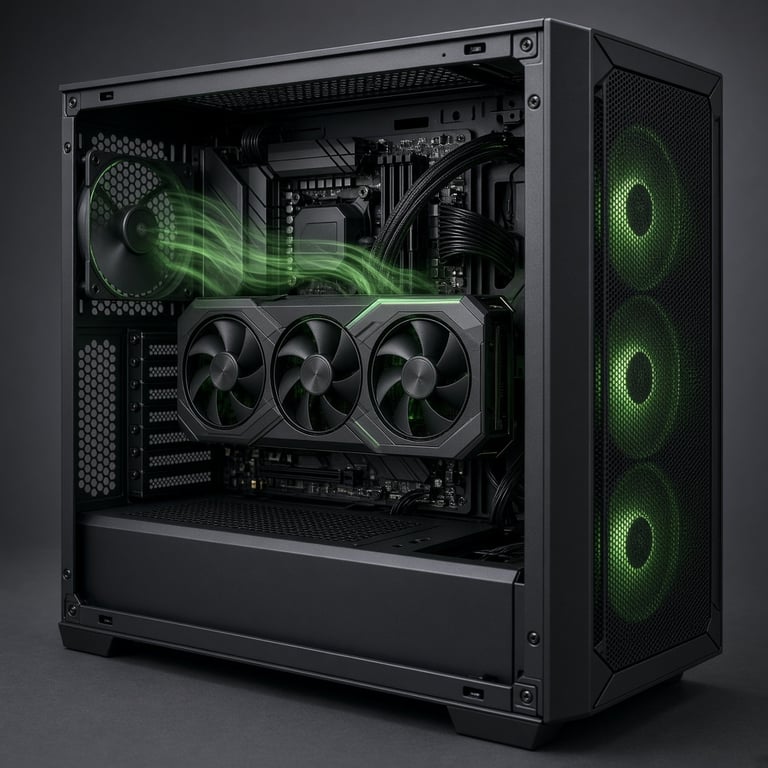

How case airflow affects GPU temperature

A graphics card can only cool itself with the air available around its heatsink. If the case has weak intake, the GPU recirculates air that it has already warmed. If exhaust fans are poorly positioned, heat can collect around the card and the processor.

A practical layout is two or more unobstructed intake fans at the front or bottom and at least one exhaust fan at the rear or top. The exact fan count matters less than the path. Keep unused expansion-slot covers in place where appropriate, route cables away from the GPU fans, and leave room around the card's intake side.

Open-air GPU coolers, which are common on gaming cards, dump heat into the case. They benefit directly from good case ventilation. A blower-style cooler sends more of its exhaust out of the rear of the case, but it can be louder and may cool differently. Know which design your card uses before changing fan placement.

If you are comparing cards, include cooler quality, dimensions, power requirements, and noise in the decision. A GPU benchmark comparison is more useful when you read those practical details alongside performance results.

Fan curves, temperature targets, and noise

The default fan curve is a compromise chosen by the card manufacturer. It may prioritize quiet operation at light loads, or it may react aggressively once the GPU reaches a certain temperature. You can adjust it with a reputable GPU monitoring or tuning utility, but change settings gradually and watch both temperature and clock behavior.

A useful test is a repeatable game scene or a short, demanding benchmark followed by a longer play session. Record:

• GPU temperature after the system has warmed up
• GPU hotspot temperature, if your monitoring software reports it
• Fan speed and noise
• Clock stability
• GPU power draw
• Whether performance drops over time

The hotspot reading is not the same as the general GPU temperature. A gap that is consistently much larger than expected can justify checking cooler contact, mounting pressure, dust, or thermal material. Do not diagnose a problem from one brief temperature spike.

Avoid setting a fixed maximum fan speed without a reason. Constant high speed increases noise and can add wear while doing little at idle. A curve that increases fan speed as load and temperature rise is usually the better everyday compromise.

Should you undervolt an NVIDIA GPU?

Undervolting reduces the voltage used at a chosen performance point. When it is stable, it can reduce power draw, heat, and fan noise without requiring a new cooler. It is especially useful when the card is installed in a compact case or when you want quieter gaming.

Undervolting is not risk-free from a stability perspective. A setting that survives a short benchmark can still fail in a particular game. Change one value at a time, test several workloads, and keep a stable profile available so you can restore the previous configuration. Watch for crashes, visual artifacts, driver resets, or performance that varies unexpectedly.

A frame-rate cap is often even simpler. If a display refreshes at a fixed rate, rendering far beyond that rate can add heat without improving what you see. Set the cap in the game or driver and compare smoothness, power draw, and temperature.

When should you replace the thermal paste?

Replacing thermal paste is a maintenance option, not the first step for every card. Consider it only when the GPU is older, temperatures have worsened despite clean airflow, the hotspot is unusually high, or the cooler has been removed and needs fresh material.

Opening a graphics card can affect warranty coverage, damage small components, or create poor contact if the cooler is reinstalled unevenly. Check the manufacturer's policy and use a guide made for the exact model. Thermal pads have different thicknesses and serve a different purpose from paste. Substituting the wrong pad can reduce contact pressure and make cooling worse.

If a card is new and its behavior appears abnormal, document the temperatures and contact the manufacturer or seller before disassembly.

Is liquid cooling the best way to cool an NVIDIA GPU?

Liquid cooling can be the best option for a specific build, but it is not the default answer. A full-cover water block transfers heat from the GPU into a liquid loop, which can offer strong sustained cooling and move heat away from the card. It also adds a pump, radiator, tubing, fittings, maintenance considerations, and possible leak points.

Choose liquid cooling when you have a clear reason, such as a tightly packed high-power build, a custom loop already cooling other components, or a priority on low noise under sustained load. For most users, a well-ventilated case and a capable air cooler are simpler and easier to maintain.

Do not transfer data-center cooling claims directly to a home graphics card. NVIDIA's liquid-cooled AI infrastructure uses cold plates, coolant distribution equipment, and a closed facility loop designed around server hardware. The supplied NVIDIA research describes systems that can operate with coolant entering at up to 45 degrees Celsius, but that is an infrastructure design detail, not a recommended GPU core temperature or a home PC setup. Gaming cards require the cooling method and operating limits specified for their model.

How to troubleshoot an overheating NVIDIA GPU

Use this sequence before replacing components:

1. Confirm the reading

Check the GPU temperature, hotspot, fan speed, clock speed, and power draw with a trusted monitoring tool. Confirm that the reading is from the GPU and not the CPU or a case sensor.

2. Reproduce the problem

Run the same game or workload long enough for temperatures to settle. Note whether the issue occurs only in one title, at a particular frame rate, or in every demanding application.

3. Inspect the physical setup

Turn off the computer and check for blocked filters, dust-packed fins, loose panels, cables near the fans, and poor clearance below the card. Confirm that the GPU power connectors are fully seated.

4. Test software changes separately

Return overclocking settings to default, then test a frame-rate cap or a conservative undervolt. If the temperature improves substantially, power or workload was part of the problem.

5. Escalate hardware faults carefully

A failed fan, a rattling pump, damaged fins, or a rapidly worsening hotspot may require repair or replacement. Avoid repeatedly running a card that shows artifacts, crashes, or signs of electrical damage.

Common GPU cooling mistakes

• Adding exhaust fans without intake airflow: This can increase noise without giving the GPU a reliable supply of cool air.
• Blocking the bottom fans: A thick graphics card can restrict intake from below, especially in a compact case.
• Cleaning only the visible fan blades: Dust may still be packed between the heatsink fins.
• Copying another card's fan curve: Different coolers, firmware, and case layouts need different settings.
• Ignoring power draw: An overclock or uncapped frame rate can create more heat than the cooler was meant to dissipate quietly.
• Opening a new card too soon: Warranty support is usually the safer first step when a new product behaves abnormally.
• Confusing data-center liquid cooling with desktop water cooling: The systems solve related heat-transfer problems at very different scales.

Frequently Asked Questions

What is the best way to cool an NVIDIA GPU in a gaming PC?

Improve case airflow, clean the heatsink and filters, tune the fan curve, and reduce unnecessary power with a frame-rate cap or stable undervolt. Upgrade the cooler only after checking those basics.

Is 80 degrees Celsius too hot for an NVIDIA GPU?

A temperature cannot be judged in isolation because limits differ by model, firmware, workload, and cooler. Check the card's specifications and look for sustained throttling, abnormal hotspot behavior, crashes, or rising temperatures rather than relying on one universal threshold.

Does more case airflow always lower GPU temperature?

No. Extra fans help only when they improve the path from intake to exhaust. Poor placement, blocked filters, turbulence, or a case panel that restricts intake can add noise with little cooling benefit.

Is a GPU water block better than an air cooler?

A water block can provide strong sustained cooling, but it is more complex and introduces pump and leak risks. A good air cooler is usually the simpler choice for a normal gaming system.

Should I use an air conditioner or point a room fan at the PC?

Lower room temperature can reduce the air entering the case, but a room fan is not a substitute for a sealed, well-planned case airflow path. Keep the computer away from direct sunlight and allow its exhaust to leave the surrounding space.

Does choosing a cooler graphics card affect the buying decision?

Yes. Cooler design, card length, thickness, fan behavior, and power draw affect noise, fit, and sustained performance. Compare those factors with the performance you need, and check latest GeForce prices before choosing a particular model.

Conclusion

The best way to cool an NVIDIA GPU is usually a complete airflow and power-management routine, not one expensive accessory. Start with unobstructed intake and exhaust, clean the card, tune its fan curve, and limit unnecessary rendering or power draw. Only then consider thermal paste work, a larger air cooler, or liquid cooling. That order keeps the solution safer, quieter, and better matched to the actual cause of high temperatures.
