9 Best Low Profile GPUs for 2026 Slim Desktops and Compact Builds

The best low profile GPU depends on more than its graphics chip. Your case clearance, power supply, available PCIe space, and target games all matter. For the fastest compact gaming option in the current shortlist, the Gigabyte GeForce RTX 5060 OC Low Profile 8G stands out. For a modest office PC upgrade, an RTX 3050 6GB LP, Radeon RX 6400 Low Profile, or even a GT 1030 may make more sense.

This guide compares the leading LP graphics cards for slim desktops, Mini ITX systems, home theater PCs, and small workstations. It also explains what to check before buying, because a card described as low profile can still be too long, too thick, or too demanding for a particular system.

Quick picks for the best low profile GPU

• Best compact gaming performance: Gigabyte GeForce RTX 5060 OC Low Profile 8G
• Best balanced Nvidia option: Asus GeForce RTX 4060 LP BRK OC
• Best simple upgrade for an older PC: MSI Gaming RTX 3050 LP 6G OC or a comparable RTX 3050 6GB LP
• Best AMD option: PowerColor Radeon RX 6400 Low Profile
• Best budget display and media card: Gigabyte GeForce GT 1030 Low Profile
• Best workstation-focused option: PNY NVIDIA RTX A2000

These recommendations serve different buyers. A card that is ideal for an OptiPlex with a small power supply is not automatically the right choice for a compact gaming PC. If you are comparing full-size cards as well, our best gaming GPU 2026 coverage can help you see what you give up by choosing a smaller form factor.

The leading low profile GPUs for compact PCs

Gigabyte GeForce RTX 5060 OC Low Profile 8G

The RTX 5060 LP is the most capable consumer gaming card in this group. PC Guide lists 8GB of GDDR7 memory, a 128-bit memory bus, and 3,840 CUDA cores for Gigabyte's low profile model. ServeTheHome's review highlights the unusual value of fitting RTX 5060-level performance into a card that is much smaller than standard versions.

That makes it the strongest choice when a small case is non-negotiable but you still want modern 1080p gaming features. Its 8GB capacity is more comfortable for current games than the 4GB options below, although it is not a workstation-class accelerator for large AI models. Check the card's power requirements and the case's double-slot clearance before buying. Low profile height does not mean every compact chassis can accept the card.

Asus GeForce RTX 4060 LP BRK OC

The RTX 4060 LP BRK OC is a practical middle ground for a compact gaming build. The listed configuration includes 8GB of GDDR6 memory, a 128-bit bus, and 3,072 CUDA cores. It has less raw capability than the RTX 5060, but it remains a sensible target for 1080p systems where efficiency and physical fit matter more than maximum performance.

Choose it when the price is clearly below newer low profile models or when a particular case and power supply are already built around this class of card. Confirm the included bracket and card length rather than relying on the product name alone.

MSI Gaming RTX 3050 LP 6G OC

The RTX 3050 6GB LP is one of the most frequently suggested upgrades for older slim desktops. The supplied research lists 6GB of GDDR6 memory, a 96-bit bus, and 2,304 CUDA cores for MSI's low profile model. A Reddit recommendation also points to the 6GB LP version as a straightforward fit for an OptiPlex-style upgrade.

This is a better match for esports games and lighter 1080p play than for demanding new releases at high settings. It is also a useful option when the computer has limited room and you want a modern Nvidia feature set without moving to a larger card. Inspect the exact model carefully, since full-height RTX 3050 cards are not interchangeable with low profile versions.

PowerColor Radeon RX 6400 Low Profile

AMD's RX 6400 remains a useful choice for a small, low-power gaming system. The listed PowerColor model has 4GB of GDDR6 memory, a 64-bit bus, and 768 stream processors. PC Guide identifies a 64W rating and a compact single-fan design, which helps explain why this GPU can work in cases with modest cooling capacity.

Its limitations are just as important. Four gigabytes of VRAM restricts demanding modern games, and its 64-bit memory bus is narrow. It is best suited to tuned 1080p settings, especially when a game supports FSR. For an older system that needs a compact card and modest power draw, however, the RX 6400 can be a sensible AMD pick.

ASRock Intel Arc A380 Low Profile

The ASRock Arc A380 LP offers 6GB of GDDR6 memory and Intel's XeSS upscaling support in a small package. The supplied specifications list 1,024 shading units, a 96-bit memory bus, and dimensions of 169 x 69 x 39 mm.

It is worth considering for affordable 1080p gaming and media use, but compatibility deserves extra attention. Confirm that the motherboard, firmware, drivers, and power supply are appropriate for the card before ordering. It is also longer than some other LP choices, so the height of the bracket is only one part of the fit check.

Gigabyte GeForce GT 1030 Low Profile

The GT 1030 is not a modern high-performance gaming recommendation, but it can still be the best low profile GPU for a very specific job. The researched Gigabyte model uses a 30W power draw, a single-slot design, and a 150mm length. It can restore smooth video playback, drive displays, and handle light esports gaming in older office PCs without an additional power connector.

Its 2GB of memory and older Pascal architecture make it unsuitable for demanding new games. Think of it as a low-power utility card for a slim desktop, HTPC, or basic multi-display setup rather than a gaming upgrade with long-term headroom.

PNY NVIDIA RTX A2000

For professional workloads, the RTX A2000 belongs in a different category from the consumer cards above. The research identifies it as a single-slot workstation card suited to CUDA work, CAD, rendering, and ray tracing in tight systems.

It can be an excellent fit when software compatibility and workstation features matter more than gaming value. It is not automatically the best choice for a gaming-first build, so compare real application and game results before paying a workstation premium.

How to choose a low profile graphics card

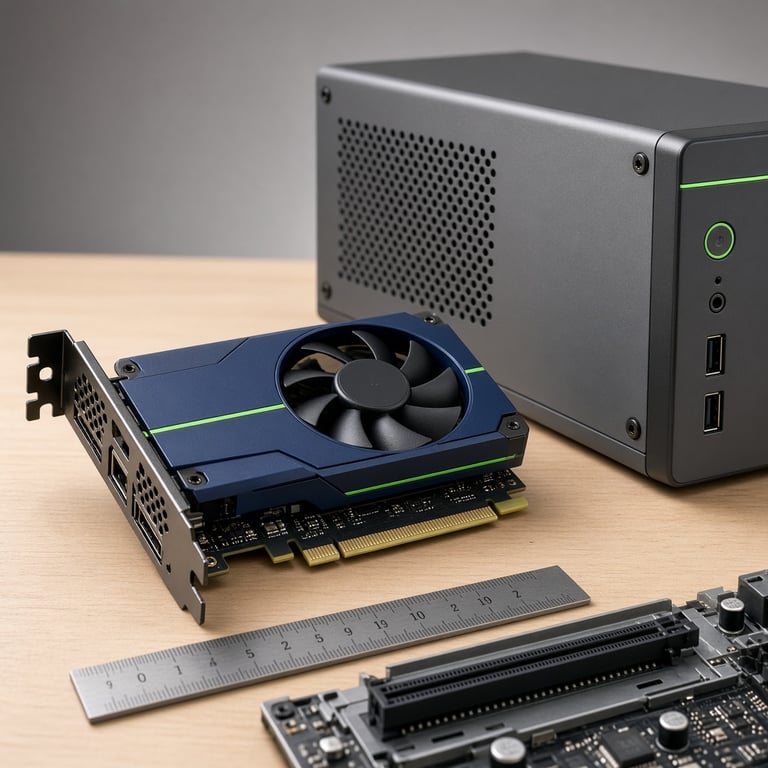

Confirm the bracket and physical dimensions

A low profile card uses a shorter expansion bracket than a standard GPU, but product dimensions still vary. Measure the available height, length, and thickness inside the case. Check whether the box includes a half-height bracket, because some cards ship with only a full-height bracket or require a separate replacement.

Also look for obstructions near the PCIe slot. A drive cage, side panel, or neighboring expansion card can make a nominally compatible card unusable. The number of slots occupied by the cooler matters just as much as the card's height.

Match power draw to the system

Many compact PCs use an OEM power supply with limited headroom and no auxiliary GPU connector. Slot-powered models are often easier upgrades, but the motherboard slot, PSU rating, and manufacturer documentation still need to agree. Never assume that a card will work simply because it fits physically.

The RTX 5060 LP offers much higher performance than basic 75W-class choices, but its power requirements demand more careful system planning. At the other end, the GT 1030 and RX 6400 appeal to builders prioritizing lower power and simple installation.

Set realistic performance goals

Low profile cards are valuable because they fit where larger cards cannot. That constraint usually means less cooling capacity, lower power limits, or fewer high-end models. Decide whether your priority is esports gaming, modern 1080p gaming, video playback, multi-monitor output, or workstation software.

For a more evidence-based comparison, use a GPU benchmark comparison that reflects your resolution and games. A synthetic score alone cannot tell you whether a card will fit, stay cool, or work with your power supply.

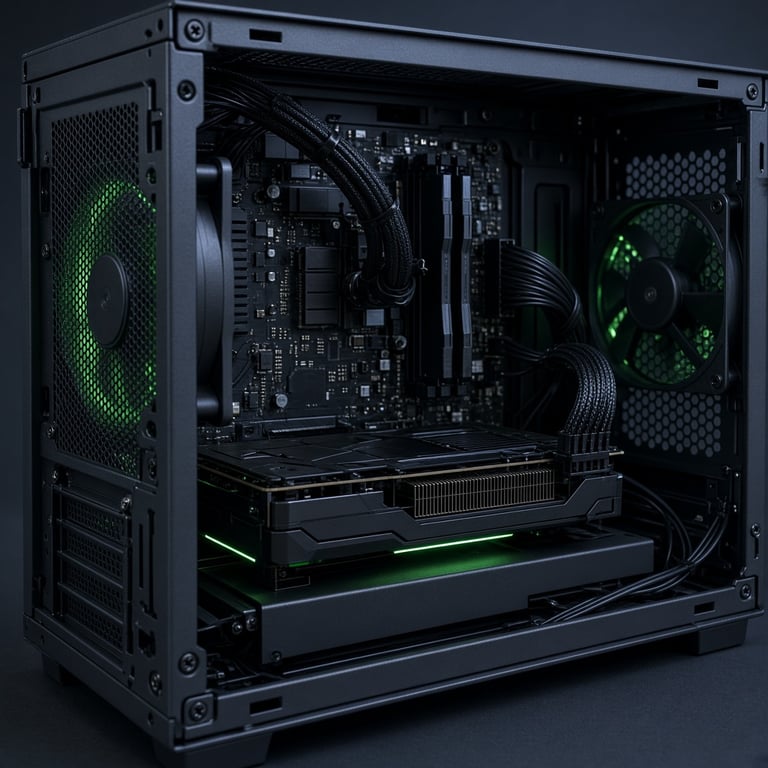

Consider cooling and noise

Small coolers have less room to dissipate heat. Make sure the case has an intake and exhaust path, keep dust away from the heatsink, and avoid blocking the card's fan. Passive models can be quiet, but they still need airflow around the heatsink. A low profile design reduces physical size, not the need for sensible ventilation.

Common mistakes to avoid

• Buying a full-height card because the GPU name matches a low profile listing
• Measuring only the bracket height and ignoring card length or thickness
• Forgetting to check for a half-height bracket in the box
• Choosing based on VRAM alone without considering the GPU's actual performance
• Assuming an old OEM power supply can support any card that fits
• Expecting a GT 1030 or RX 6400 to perform like a current mid-range gaming GPU
• Ignoring motherboard, firmware, or driver compatibility with a newer architecture

Our GPU buying checklist is useful when you need to compare fit, power, memory, and benchmark evidence together instead of choosing from a specification sheet alone.

Frequently asked questions

What is the best low profile GPU for gaming in 2026?

The Gigabyte GeForce RTX 5060 OC Low Profile 8G is the strongest gaming-focused option in the supplied 2026 shortlist. It combines a compact design with 8GB of GDDR7 memory and RTX 5060-class performance. Make sure your case and power supply support it before buying.

Is a low profile GPU good for 1080p gaming?

Yes, the right low profile GPU can handle 1080p gaming, especially esports and less demanding titles. The RTX 5060 LP and RTX 4060 LP are better suited to current games, while the RX 6400, RTX 3050 LP, and Arc A380 LP are more dependent on sensible settings and upscaling.

Will a low profile GPU fit any small PC?

No. The card must match the case's bracket height, length, thickness, slot spacing, power limit, and cooling capacity. Check the exact model dimensions and confirm that a low profile bracket is included or available.

Is the GT 1030 still worth buying?

It can be worthwhile for low-power video output, basic media playback, multi-display use, and light gaming in an older slim PC. It is not a good choice for demanding modern games because its 2GB memory and older architecture leave limited headroom.

Conclusion

The best low profile GPU is the one that fits your system's physical and electrical limits while matching the work you actually do. Pick the RTX 5060 LP for the highest compact gaming performance, the RTX 4060 LP or RTX 3050 LP for balanced 1080p upgrades, and the RX 6400 or GT 1030 when low power and easy installation matter most. Measure first, verify the bracket and PSU, then compare performance for your own games and applications.
