To determine if a GPU will fit in your case, start by measuring the available space where the graphics card will go. Next, check the GPU’s specifications, especially its length and width, and compare these dimensions with your case’s measurements. From my personal experience, ensuring these details match prevents the frustration of receiving a GPU that doesn’t fit.
To know if a GPU will fit in your case, first measure the available space inside your case where the GPU will be installed. Then, check the GPU’s dimensions and compare them with your case’s measurements. This ensures a perfect fit and avoids compatibility issues.
Introduction to Why GPU Fit Matters
When upgrading your computer, making sure that your new GPU fits properly in your case is crucial. How to know if gpu will fit in case is a common concern for many. The size of your GPU affects not just whether it will physically fit, but also how well it performs.
A GPU that’s too large might not only block other components but can also cause overheating if there’s insufficient airflow. To avoid these issues, you need to measure the space inside your case and compare it with the GPU’s dimensions. This ensures that you get a GPU that fits comfortably, allowing your system to run smoothly without any physical constraints or performance problems.
Understanding GPU and Case Compatibility
Understanding GPU and case compatibility is crucial when upgrading your computer. To determine how to know if a GPU will fit in your case, start by measuring the space inside your case where the graphics card will go. Check the dimensions of the GPU and compare them to the space you measured.
1. The Importance of Proper Fit:
Ensuring the proper fit of your GPU in your computer case is essential for optimal performance and functionality. A GPU that fits correctly prevents potential issues like overheating and airflow problems, which can lead to reduced performance or hardware damage. By knowing how to check if your GPU will fit in your case, you can avoid complications during installation and ensure your system runs smoothly and efficiently.
2. How a Misfit Can Affect Performance:
A GPU that doesn’t fit properly in your case can significantly impact your computer’s performance. If the GPU is too large, it may block airflow, leading to overheating and thermal throttling, which can reduce performance and lifespan.
Conversely, if it’s too small or improperly installed, it might not make full contact with the PCIe slot, causing instability or crashes. Understanding how to know if your GPU will fit in your case helps avoid these issues and ensures optimal operation.

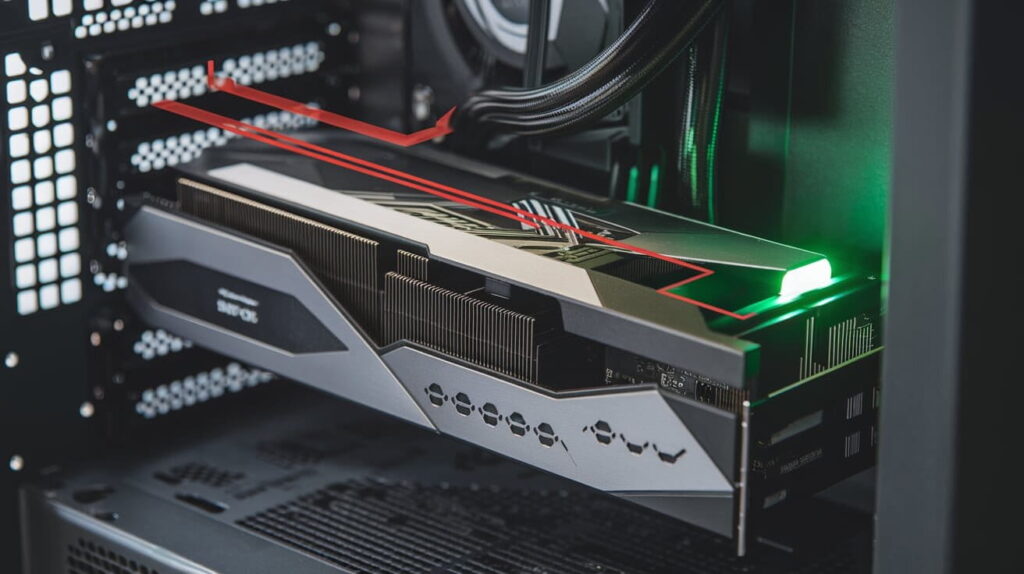

Step-by-Step Guide to Checking GPU Fit
To determine how to know if gpu will fit in case, start by measuring the available space where the GPU will be installed. how to know if gpu will fit in case involves checking the GPU’s dimensions against these measurements.
Next, assess how to know if gpu will fit in case by ensuring that there is enough clearance for cables, drive cages, and cooling solutions. Finally, confirm that the GPU slot on your motherboard aligns correctly with your case’s mounting options. By following these steps, you can confidently determine how to know if gpu will fit in case without any compatibility issues.
1. Measure Your Case’s Dimensions:
To accurately determine how to know if GPU will fit in your case, start by measuring your case’s internal dimensions. Use a tape measure to check the length, width, and height of the space where the GPU will be installed. Compare these measurements with the GPU’s dimensions to see if it will fit comfortably. Ensuring how to know if GPU will fit in the case involves not only measuring the main compartment but also checking for potential obstructions like drive cages or cables that could affect the fit.
2. Check GPU Specifications:
- Find GPU Dimensions: Look up the length, width, and height of the GPU from the manufacturer’s website or product manual.
- Verify Slot Compatibility: Ensure the GPU fits the PCIe slot available in your case.
- Review Power Requirements: Confirm the GPU’s power needs and check if your power supply unit (PSU) meets these requirements.
- Consider Cooling Solutions: Check if the GPU’s cooling system fits within the case’s airflow and cooling setup.
- Check for Additional Components: Make sure any additional features, like extra cooling fans or backplates, do not obstruct the GPU’s installation.
3. Compare Dimensions and Clearances:
- Match GPU Length with Case Space: Compare the GPU’s length with the available length inside your case to ensure it fits without obstruction.
- Check GPU Width Against Case Width: Measure the width of the GPU and ensure it fits between your case’s side panels or any other internal components.
- Assess GPU Height for Clearance: Verify the GPU’s height to ensure there’s enough space above and below it in the case, avoiding any interference with other parts like CPU coolers or drive bays.
- Consider Additional Clearance Needs: Factor in extra space for cooling and cable management to ensure the GPU fits comfortably and operates efficiently.
Detailed Look at GPU Dimensions
To determine how to know if a GPU will fit in a case, you need to closely examine GPU dimensions.To determine whether the GPU will fit in the case, start by measuring the length of the GPU and comparing it to the available space in the case.
Additionally, check the width and height of the GPU, ensuring these dimensions align with your case’s internal measurements. Understanding how to know if a GPU will fit in a case also involves verifying the GPU’s depth to avoid any obstructions.
1. GPU Length: How to Measure:
To understand how to know if a GPU will fit in a case, measuring the GPU length is essential. Start by using a ruler or measuring tape to gauge the distance from the PCIe slot to the end of the GPU. Next, compare this measurement with the available length inside your computer case to ensure it accommodates the GPU.
2. GPU Width: Importance of Space:
- Measure the GPU Width: Determine the width of the GPU to ensure it fits within the confines of your case.
- Check Case Clearance: Verify that your case has sufficient space to accommodate the GPU’s width without obstructing airflow or other components.
- Consider Additional Components: Ensure that any additional components or cooling solutions in the case do not interfere with the GPU’s width.
- Verify Slot Compatibility: Confirm that the GPU width is compatible with the PCIe slot area and does not cause installation issues.
3. GPU Depth: Assessing Maximum Length:
- Measure GPU Depth: Check the depth of the GPU to ensure it fits within the case’s available space from front to back.
- Assess Case Depth: Ensure your case has enough depth to accommodate the GPU without obstructing other components or internal structures.
- Check for Obstructions: Verify that the GPU’s depth doesn’t interfere with other hardware like CPU coolers or drive bays.
- Confirm Adequate Clearance: Ensure there is enough space for proper airflow and cooling around the GPU, considering its depth.
Utilizing Online Resources and Tools
1. PCPartPicker and Other Tools:
- PCPartPicker: Utilize PCPartPicker to check GPU compatibility with your case by inputting both components and seeing if they fit together.
- Compatibility Checkers: Use online compatibility checkers on manufacturer websites to verify if your chosen GPU will fit your case.
- Build Configurators: Explore build configurators and online forums where users share their experiences and compatibility insights to ensure a perfect fit for your GPU.
2. Manufacturer Specifications and Forums:
- Manufacturer Specifications: Always refer to the manufacturer’s website for detailed GPU dimensions and case requirements to ensure proper fit.
- Product Manuals: Check the GPU and case product manuals for specific dimensions and compatibility information.
- Forums and User Reviews: Browse forums and user reviews for real-world experiences and additional tips on fitting GPUs into cases.
FAQ’s
1. How Can I Verify GPU Dimensions Before Purchase?
To verify GPU dimensions before purchase, check the manufacturer’s website for detailed specs, consult product manuals, and use online tools like PCPartPicker to ensure compatibility with your case.
2. What Should I Do If My GPU Is Too Long for My Case?
If your GPU is too long for your case, you may be able to fit a shorter GPU model into your present setup, remove or relocate drive cages, or upgrade to a larger case.
3. How Do I Determine If a GPU Will Block Other Components?
Measure the GPU’s width and depth against the available space in your case, checking for potential blockages of other components like RAM or CPU coolers.
4. Are There Specific Tools to Help Me Check GPU and Case Compatibility?
Yes, tools like PCPartPicker and online case compatibility checkers can help you assess whether your chosen GPU will fit in your case based on its dimensions and layout.
5. How Can I Ensure Proper Airflow With a Large GPU?
To ensure proper airflow with a large GPU, plan your case’s cooling strategy by managing cables efficiently, using high-quality case fans, and considering additional ventilation or cooling solutions.
Conclusion:
Ensuring that your GPU fits perfectly in your case is crucial for optimal performance and system stability. By carefully measuring the dimensions of your GPU and your case, considering potential obstacles, and using online tools and manufacturer specifications, you can confidently determine compatibility.
